#007 — Fire Tornado Table

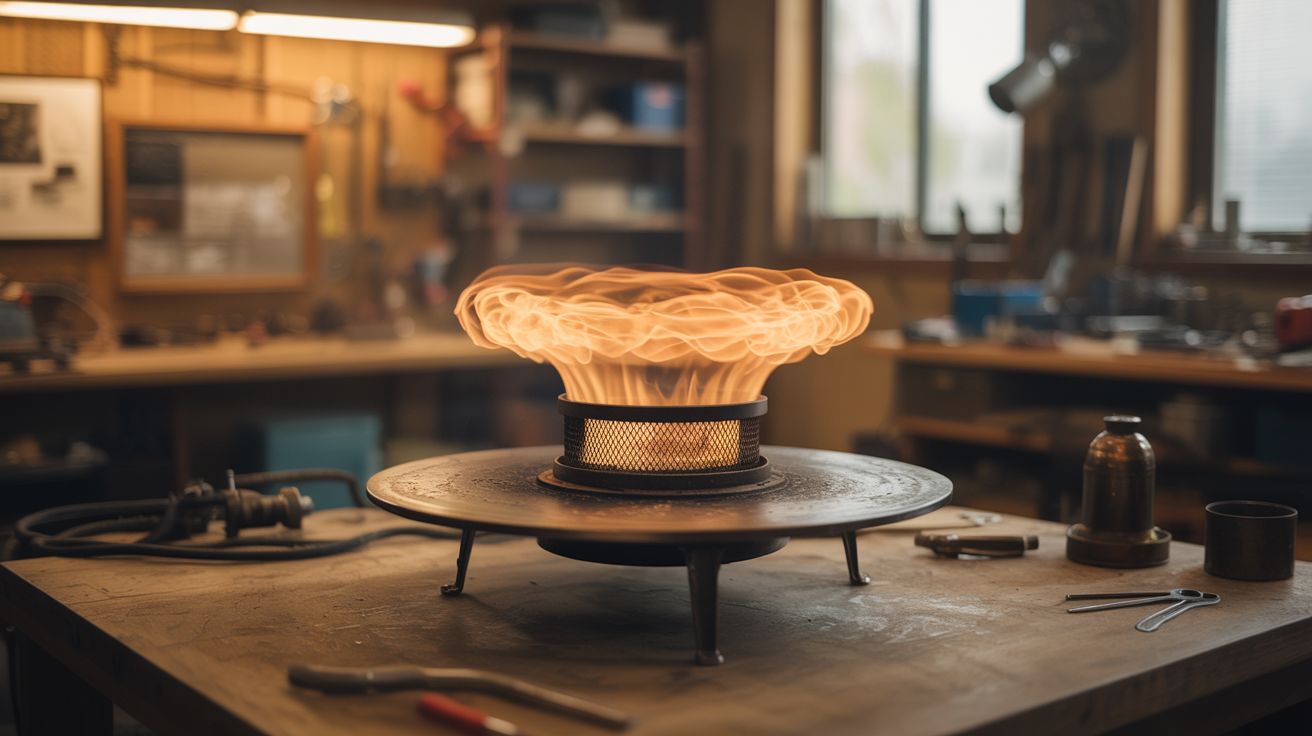

Fire Tornado Table

A lazy susan, some mesh screen, and a fuel source — spins up a mesmerizing tabletop fire tornado on demand.

Ratings

Jaw Drop Brain Melt Wallet Spicy Clout Time

🧪 What Is It?

A cylindrical cage of fine metal mesh screen sits on a lazy susan bearing. In the center is a small fuel source — a can of gel fuel, a cotton ball soaked in rubbing alcohol, or a small propane burner. When you spin the mesh cylinder, it drags air around the flame tangentially, creating a vortex. The flame stretches upward into a tight, spinning tornado column that can reach 2-3 feet tall from a fuel source only a few inches wide.

The physics is the same as a real tornado — angular momentum concentrates the rising hot air into a tighter and tighter column, and conservation of angular momentum speeds up the rotation. The mesh screen provides just enough air drag to set the rotation going while still allowing airflow through. The result is one of the most photogenic physics demonstrations you can build, and it takes less than an hour.

🧰 Ingredients
  • Lazy susan bearing, 6-12 inch (source: hardware store or inside old microwave turntable, ~$5-8)
  • Fine metal mesh screen / hardware cloth, about 2ft x 3ft (source: hardware store, ~$8)
  • Two metal rings or embroidery hoops for top and bottom of the mesh cylinder (source: craft store or bend your own from wire, ~$3)
  • Gel fuel can (like Sterno) or small fire-safe container for rubbing alcohol (source: grocery store or camping supply, ~$3)
  • Wooden or metal base platform (source: scrap wood, free)
  • Small screws or wire for assembly (source: hardware store or junk drawer)

🔨 Build Steps

  1. Build the base platform. Mount the lazy susan bearing centered on a flat wooden or metal platform, at least 16 inches square. The platform needs to be heavy enough to stay stable when the cylinder is spinning. Screw the bearing down securely.

  2. Form the mesh cylinder. Roll the metal mesh screen into a cylinder about 12-16 inches in diameter and 18-24 inches tall. The diameter matters — too small and the flame is choked; too large and the vortex effect is weak. Wire or rivet the overlapping seam so it holds shape.

  3. Add structural rings. Attach a metal ring or embroidery hoop to the top and bottom of the mesh cylinder to keep it circular and rigid. Wire or crimp the mesh to the rings. The bottom ring mounts to the spinning platform of the lazy susan.

  4. Mount the cylinder to the lazy susan. Attach the mesh cylinder's bottom ring to the rotating plate of the lazy susan. It should spin freely. Test it — give it a spin and make sure it rotates smoothly without wobbling.

  5. Place the fuel source. Set your gel fuel can or fire-safe alcohol container in the center of the base platform, directly below the center of the mesh cylinder. The fuel source should NOT spin — only the mesh cylinder spins around it. You may need to mount it to the stationary base.

  6. Light and spin. Light the fuel source. Let the flame establish for 30 seconds. Then give the mesh cylinder a firm spin. As it rotates, the flame will immediately begin to stretch upward and twist into a vortex. Faster spinning = taller tornado.

  7. Optimize. Experiment with spin speed, fuel source height, and mesh density. Finer mesh creates more air drag and a tighter vortex. A platform-level fuel source works differently than one raised on a small pedestal. Adding a small amount of colored flame additive (boric acid for green, lithium for red) makes it even more spectacular.

⚠️ Safety Notes

Spicy Level 3 build. Read the Safety Guide and Chemical Safety, Fire & Pyro Safety, High Voltage Safety before starting.

[!WARNING] Keep the fire tornado away from overhead flammables. The flame column can easily reach 3 feet tall and sometimes throws sparks. Do this outdoors or under a high, non-flammable ceiling. Not under a canopy, tree, or garage ceiling.

  • The spinning mesh can throw embers outward. Clear the area around the device of paper, dry leaves, and other tinder. Keep a fire extinguisher or water bucket within reach.
  • Gel fuel and rubbing alcohol spills are hard to see when burning. If the fuel container tips, you'll have an invisible alcohol fire spreading across the table. Use a stable, weighted fuel container that can't tip over, and keep the gel fuel can in a wider metal dish as secondary containment.
