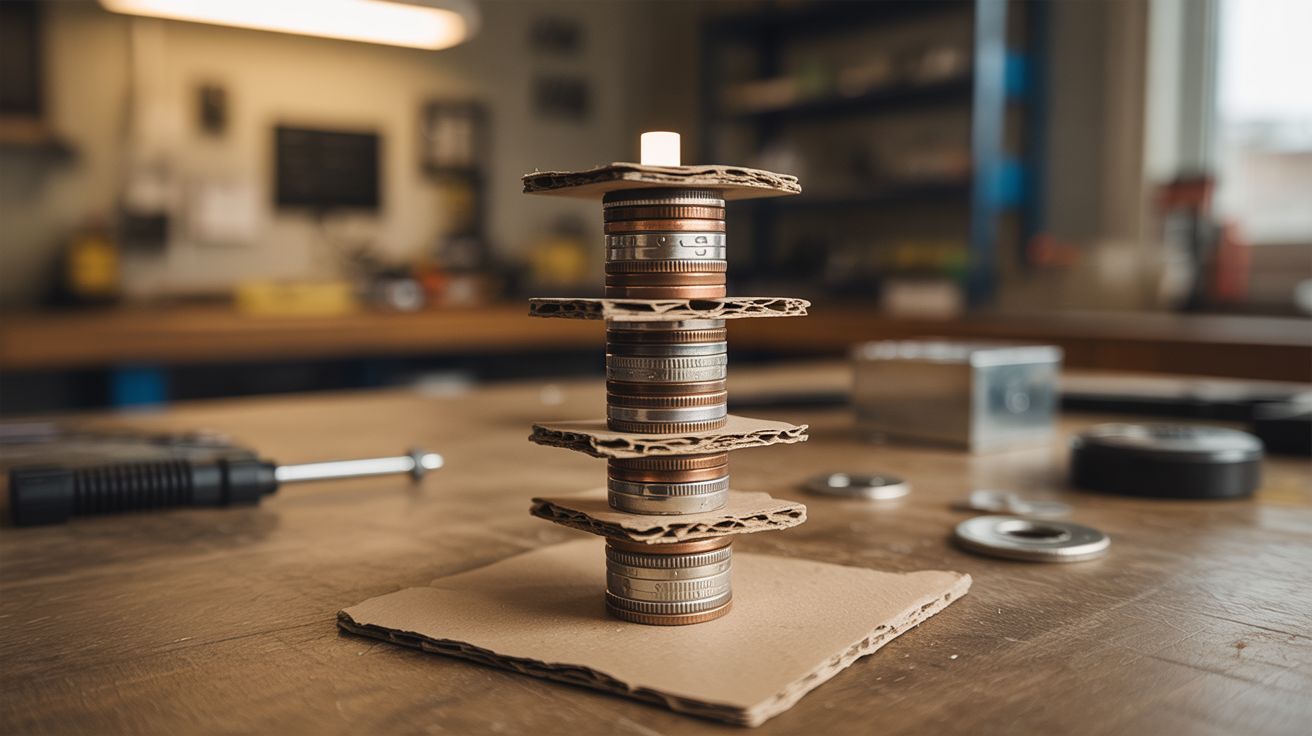

#218 — Coin Battery Stack

Copper coins, zinc washers, vinegar-soaked cardboard spacers — stack them up and you've built a voltaic pile that generates enough voltage to light an LED. The original battery, reinvented from pocket change.

Ratings

🧪 What Is It?

In 1800, Alessandro Volta invented the first true battery by stacking alternating discs of copper and zinc separated by brine-soaked cardboard. Each copper-zinc pair generates about 0.7-1.0 volts through an electrochemical reaction: the zinc oxidizes (loses electrons), the copper reduces (gains electrons), and the acidic electrolyte (vinegar) carries ions between them. Stack 10 pairs and you get 7-10 volts — enough to power an LED, a small buzzer, or a calculator.

You can build Volta's original invention using pennies (copper-plated zinc since 1982), galvanized washers (zinc-coated steel), and cardboard soaked in white vinegar. Pre-1982 US pennies are solid copper and work best, but post-1982 copper-plated pennies work too — the copper surface is what matters. Each cell produces about 0.7V. A stack of 5 cells (roughly 3.5V) lights a white LED. A stack of 10 cells powers a small digital clock.

It's the most fundamental demonstration of electrochemistry — you are literally building electricity from metal and acid. The same reaction happening in your coin stack is what powers every zinc-carbon and alkaline battery ever made.

🔨 Build Steps

1. Clean the pennies. Dirty pennies have an oxide layer that reduces conductivity. Soak them in vinegar for 5 minutes, then scrub with salt and rinse. They should be bright and shiny. This step significantly improves cell voltage.
2. Cut the cardboard spacers. Cut cardboard into discs roughly the same diameter as the pennies. You need one spacer for each cell. The spacers should be thick enough to hold vinegar (corrugated cardboard works well) but not so thick that the internal resistance is too high. One layer of cereal box cardboard is ideal.
3. Soak the spacers. Submerge the cardboard discs in white vinegar for 2-3 minutes. The vinegar is the electrolyte — it provides the acidic solution that allows ions to flow between the zinc and copper. The cardboard just holds the vinegar in place between the metal discs.
4. Build the first cell. Place a galvanized washer (zinc) on the table. Place a vinegar-soaked cardboard disc on top of it. Place a penny (copper) on top of the cardboard. That's one cell: zinc-electrolyte-copper. It generates approximately 0.7V.
5. Stack additional cells. Place another zinc washer on top of the penny, then another soaked cardboard disc, then another penny. Repeat. Each cell adds ~0.7V. For a red LED, you need at least 3 cells (~2.1V). For a white LED, at least 5 cells (~3.5V). For a buzzer or clock, 8-10 cells (~5.6-7V). Keep the stack aligned — a leaning tower shorts out adjacent cells.
6. Secure the stack. Wrap electrical tape around the stack vertically to hold it together. Leave the top penny (positive terminal) and bottom washer (negative terminal) exposed for connections.
7. Connect the LED. Touch one wire from the bottom zinc washer (negative) to the shorter LED leg (cathode). Touch another wire from the top penny (positive) to the longer LED leg (anode). The LED should glow. If it doesn't, check the stack alignment (cells may be shorted), the cardboard saturation (may have dried out), and the LED polarity (reverse the leads).
8. Experiment with configurations. Try different electrolytes: lemon juice, salt water, Gatorade. Try different metals: aluminum foil instead of zinc, steel washers instead of copper. Measure each cell's voltage with a multimeter and compare. This is how early battery researchers worked — systematic testing of metal pairs and electrolytes.

⚠️ Safety Notes

• The voltages produced are far too low to cause electric shock. This is one of the safest electrical builds possible.
• Vinegar is a mild acid that can irritate cuts and eyes. Wash hands after handling soaked components. If vinegar contacts eyes, rinse with water for several minutes.
• After the experiment, the zinc washers and pennies may have a light coating of corrosion products (zinc acetate, copper acetate). These are mildly toxic if ingested. Don't let young children put the coins in their mouths after use. Wash all components before returning pennies to circulation.
